MB AM4 GIGABYTE B550 AORUS ELITE AX rev. 2.0

Name: MB AM4 GIGABYTE B550 AORUS ELITE AX rev. 2.0 - G Store & Repair doo
Brand: GIGABYTE
SKU: -1
Price: 19994 RSD
Availability: InStock
Rating: 88 (20 reviews)

https://www.gstore.rs/images/products/big/91559.png

https://www.gstore.rs/images/products/big/91560.png

https://www.gstore.rs/images/products/big/91561.png

https://www.gstore.rs/images/products/big/91562.png

Štampaj

Lista želja

Šifra: 50335

EAN: 4719331809904

Na stanju

Do 4 radnih dana

Broj bodova koje osvajate kupovinom ovog artikla 200

1 bod = 1 RSD

Više detalja o bodovima

Raiffeisen Bank

Web kredit na 23 mesečne rate 869,00 rsd. / mes

Vidi više

Web cena:

*Cena za gotovinu,

pouzećem ili kartice jednokratno

19.994,00 rsd.

Maloprodajna cena:

*Za odloženo plaćanje

21.829,00 rsd.

Ne odgovara Vam cena?

Upišite cenu koja Vam je odgovarajuća. Potrudićemo se da Vam damo najbolju ponudu

CPU
1. AMD Socket AM4, support for: AMD Ryzen™ 5000 Series/ Ryzen™ 5000 G-Series/ Ryzen™ 4000 G-Series and Ryzen™ 3000 Series Processors
(Please refer "CPU Support List" for more information.)
Chipset
1. AMD B550
Memory
1. 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
2. Support for DDR4 4733(O.C.) / 4600(O.C.) / 4400(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C) / 3400(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules
3. Dual channel memory architecture
4. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules*
  * ECC memory (ECC mode) support varies by CPU
5. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
6. Support for Extreme Memory Profile (XMP) memory modules
(Please refer "Memory Support List" for more information.)
Onboard Graphics
Integrated Graphics Processor:
1. 1 x DisplayPort, supporting a maximum resolution of 5120x2880@60 Hz
  * Support for DisplayPort 1.4 version, HDCP 2.3, and HDR.
2. 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
  * Support for HDMI 2.1 version, HDCP 2.3, and HDR.
Maximum shared memory of 16 GB
Audio
1. Realtek^® ALC1200 codec
2. High Definition Audio
3. 2/4/5.1/7.1-channel
4. Support for S/PDIF Out
LAN
1. Realtek^® 2.5GbE LAN chip (2.5 Gbit/1 Gbit/100 Mbit)
Wireless Communication module
Intel^® Wi-Fi 6 AX200
1. WIFI a, b, g, n, ac with wave 2 features, ax, supporting 2.4/5 GHz Dual-Band
2. BLUETOOTH 5
3. Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate
  * Actual data rate may vary depending on environment and equipment.
Expansion Slots
1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:
1. AMD Ryzen™ 5000 Series and Ryzen™ 3000 Series Processors support PCIe 4.0 x16 mode
2. AMD Ryzen™ Ryzen™ 5000 G-Series and Ryzen™ 4000 G-Series Processors support PCIe 3.0 x16 mode
  * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
1 x PCI Express x16 slot (PCIEX2), integrated in the Chipset:
1. Supporting PCIe 3.0 x2 mode
1 x PCI Express x16 slot (PCIEX1_2), integrated in the Chipset:
1. Supporting PCIe 3.0 x1 mode
1 x PCI Express x1 slot (PCIEX1_1), integrated in the Chipset:
1. Supporting PCIe 3.0 x1 mode
Storage Interface
1. 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2242/2260/2280/22110 SSDs:
  - AMD Ryzen™ 5000 Series and Ryzen™ 3000 Series Processors support SATA and PCIe 4.0 x4/x2 SSDs
  - AMD Ryzen™ Ryzen™ 5000 G-Series and Ryzen™ 4000 G-Series Processors support SATA and PCIe 3.0 x4/x2 SSDs
2. 1 x M.2 connector (M2B_SB), integrated in the Chipset, supporting Socket 3, M key, type 2242/2260/2280/22110 SSDs:
  - Supporting SATA and PCIe 3.0 x4/x2 SSDs
3. 4 x SATA 6Gb/s connectors, integrated in the Chipset:
  - Support for RAID 0, RAID 1, and RAID 10
USB
CPU:
1. 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel
2. 2 x USB 3.2 Gen 1 ports on the back panel
Chipset:
1. 1 x USB Type-C™ port with USB 3.2 Gen 1 support, available through the internal USB header
2. 1 x USB 3.2 Gen 1 port on the back panel
3. 2 x USB 3.2 Gen 1 ports available through the internal USB header
4. 2 x USB 2.0/1.1 ports on the back panel
Chipset+USB 2.0 Hub:
1. 4 x USB 2.0/1.1 ports available through the internal USB headers
Internal I/O Connectors
1. 1 x 24-pin ATX main power connector
2. 1 x 8-pin ATX 12V power connector
3. 2 x M.2 Socket 3 connectors
4. 4 x SATA 6Gb/s connectors
5. 1 x CPU fan header
6. 1 x water cooling CPU fan header
7. 3 x system fan headers
8. 1 x CPU cooler LED strip/RGB LED strip header
9. 2 x addressable LED strip headers
10. 2 x RGB LED strip headers
11. 1 x front panel header
12. 1 x front panel audio header
13. 1 x USB Type-C™ port, with USB 3.2 Gen 1 support
14. 1 x USB 3.2 Gen 1 header
15. 2 x USB 2.0/1.1 headers
16. 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only)
17. 1 x Clear CMOS jumper
*All fan headers are subject to support AIO_Pump, Pump and high performance fan with the capability of delivering up to 2A/12V @ 24W.

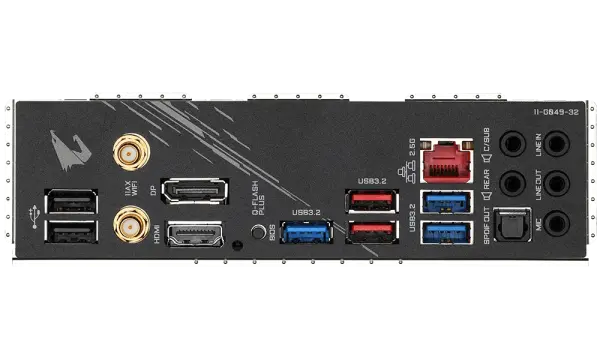

Back Panel Connectors
1. 1 x DisplayPort
2. 1 x HDMI port
3. 2 x SMA antenna connectors (2T2R)
4. 2 x USB 3.2 Gen 2 Type-A ports (red)
5. 3 x USB 3.2 Gen 1 ports
6. 2 x USB 2.0/1.1 ports
7. 1 x Q-Flash Plus button
8. 1 x RJ-45 port
9. 1 x optical S/PDIF Out connector
10. 5 x audio jacks
I/O Controller
1. iTE^® I/O Controller Chip
H/W Monitoring
1. Voltage detection
2. Temperature detection
3. Fan speed detection
4. Water cooling flow rate detection
5. Overheating warning
6. Fan fail warning
7. Fan speed control
  * Whether the fan speed control function is supported will depend on the fan you install.
BIOS
1. 1 x 256 Mbit flash
2. Use of licensed AMI UEFI BIOS
3. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features
1. Support for APP Center
  * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
  @BIOS
  EasyTune
  Fast Boot
  Game Boost
  ON/OFF Charge
  RGB Fusion
  Smart Backup
  System Information Viewer
2. Support for Q-Flash Plus
3. Support for Q-Flash
4. Support for Xpress Install
Bundled Software
1. Norton^® Internet Security (OEM version)
2. Realtek^® 8125 Gaming LAN Bandwidth Control Utility
Operating System
1. Support for Windows 11 64-bit
2. Support for Windows 10 64-bit
Form Factor
1. ATX Form Factor; 30.5cm x 24.4cm

CPU
1. AMD Socket AM4, support for: AMD Ryzen™ 5000 Series/ Ryzen™ 5000 G-Series/ Ryzen™ 4000 G-Series and Ryzen™ 3000 Series Processors
(Please refer "CPU Support List" for more information.)
Chipset
1. AMD B550
Memory
1. 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
2. Support for DDR4 4733(O.C.) / 4600(O.C.) / 4400(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C) / 3400(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules
3. Dual channel memory architecture
4. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules*
  * ECC memory (ECC mode) support varies by CPU
5. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
6. Support for Extreme Memory Profile (XMP) memory modules
(Please refer "Memory Support List" for more information.)
Onboard Graphics
Integrated Graphics Processor:
1. 1 x DisplayPort, supporting a maximum resolution of 5120x2880@60 Hz
  * Support for DisplayPort 1.4 version, HDCP 2.3, and HDR.
2. 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
  * Support for HDMI 2.1 version, HDCP 2.3, and HDR.
Maximum shared memory of 16 GB
Audio
1. Realtek^® ALC1200 codec
2. High Definition Audio
3. 2/4/5.1/7.1-channel
4. Support for S/PDIF Out
LAN
1. Realtek^® 2.5GbE LAN chip (2.5 Gbit/1 Gbit/100 Mbit)
Wireless Communication module
Intel^® Wi-Fi 6 AX200
1. WIFI a, b, g, n, ac with wave 2 features, ax, supporting 2.4/5 GHz Dual-Band
2. BLUETOOTH 5
3. Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate
  * Actual data rate may vary depending on environment and equipment.
Expansion Slots
1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:
1. AMD Ryzen™ 5000 Series and Ryzen™ 3000 Series Processors support PCIe 4.0 x16 mode
2. AMD Ryzen™ Ryzen™ 5000 G-Series and Ryzen™ 4000 G-Series Processors support PCIe 3.0 x16 mode
  * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
1 x PCI Express x16 slot (PCIEX2), integrated in the Chipset:
1. Supporting PCIe 3.0 x2 mode
1 x PCI Express x16 slot (PCIEX1_2), integrated in the Chipset:
1. Supporting PCIe 3.0 x1 mode
1 x PCI Express x1 slot (PCIEX1_1), integrated in the Chipset:
1. Supporting PCIe 3.0 x1 mode
Storage Interface
1. 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2242/2260/2280/22110 SSDs:
  - AMD Ryzen™ 5000 Series and Ryzen™ 3000 Series Processors support SATA and PCIe 4.0 x4/x2 SSDs
  - AMD Ryzen™ Ryzen™ 5000 G-Series and Ryzen™ 4000 G-Series Processors support SATA and PCIe 3.0 x4/x2 SSDs
2. 1 x M.2 connector (M2B_SB), integrated in the Chipset, supporting Socket 3, M key, type 2242/2260/2280/22110 SSDs:
  - Supporting SATA and PCIe 3.0 x4/x2 SSDs
3. 4 x SATA 6Gb/s connectors, integrated in the Chipset:
  - Support for RAID 0, RAID 1, and RAID 10
USB
CPU:
1. 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel
2. 2 x USB 3.2 Gen 1 ports on the back panel
Chipset:
1. 1 x USB Type-C™ port with USB 3.2 Gen 1 support, available through the internal USB header
2. 1 x USB 3.2 Gen 1 port on the back panel
3. 2 x USB 3.2 Gen 1 ports available through the internal USB header
4. 2 x USB 2.0/1.1 ports on the back panel
Chipset+USB 2.0 Hub:
1. 4 x USB 2.0/1.1 ports available through the internal USB headers
Internal I/O Connectors
1. 1 x 24-pin ATX main power connector
2. 1 x 8-pin ATX 12V power connector
3. 2 x M.2 Socket 3 connectors
4. 4 x SATA 6Gb/s connectors
5. 1 x CPU fan header
6. 1 x water cooling CPU fan header
7. 3 x system fan headers
8. 1 x CPU cooler LED strip/RGB LED strip header
9. 2 x addressable LED strip headers
10. 2 x RGB LED strip headers
11. 1 x front panel header
12. 1 x front panel audio header
13. 1 x USB Type-C™ port, with USB 3.2 Gen 1 support
14. 1 x USB 3.2 Gen 1 header
15. 2 x USB 2.0/1.1 headers
16. 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only)
17. 1 x Clear CMOS jumper
*All fan headers are subject to support AIO_Pump, Pump and high performance fan with the capability of delivering up to 2A/12V @ 24W.
Back Panel Connectors
1. 1 x DisplayPort
2. 1 x HDMI port
3. 2 x SMA antenna connectors (2T2R)
4. 2 x USB 3.2 Gen 2 Type-A ports (red)
5. 3 x USB 3.2 Gen 1 ports
6. 2 x USB 2.0/1.1 ports
7. 1 x Q-Flash Plus button
8. 1 x RJ-45 port
9. 1 x optical S/PDIF Out connector
10. 5 x audio jacks
I/O Controller
1. iTE^® I/O Controller Chip
H/W Monitoring
1. Voltage detection
2. Temperature detection
3. Fan speed detection
4. Water cooling flow rate detection
5. Overheating warning
6. Fan fail warning
7. Fan speed control
  * Whether the fan speed control function is supported will depend on the fan you install.
BIOS
1. 1 x 256 Mbit flash
2. Use of licensed AMI UEFI BIOS
3. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features
1. Support for APP Center
  * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
  @BIOS
  EasyTune
  Fast Boot
  Game Boost
  ON/OFF Charge
  RGB Fusion
  Smart Backup
  System Information Viewer
2. Support for Q-Flash Plus
3. Support for Q-Flash
4. Support for Xpress Install
Bundled Software
1. Norton^® Internet Security (OEM version)
2. Realtek^® 8125 Gaming LAN Bandwidth Control Utility
Operating System
1. Support for Windows 11 64-bit
2. Support for Windows 10 64-bit
Form Factor
1. ATX Form Factor; 30.5cm x 24.4cm
